    PosMAC Guardrail

    What is PosMAC ?

    • Innovative High Corrosion-resistant steel plate “PosMAC”

      -TERNARY ALLOY COATED STEEL PLATE(ZN-3%, Mg-2.5%, AI)

    • 3times higher corrosion-resistant properties than conventional hot-dip galvanized product

    • Excellent Anti-corrosive property on the flat surfaces / Anti-corrosive property on cut edges / Strong anti-corrosive property against acid rain

    • High corrosion resistance against neutral salt (High efficiency of guardrail at sea side)

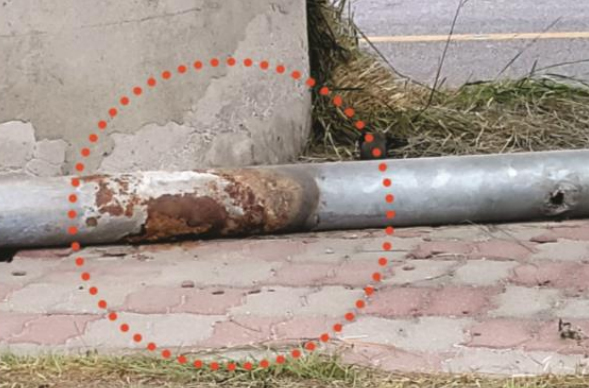

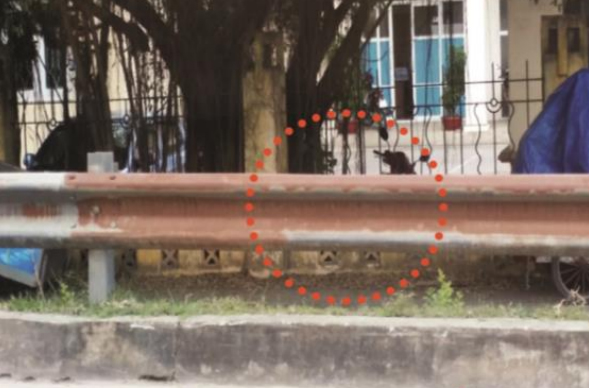

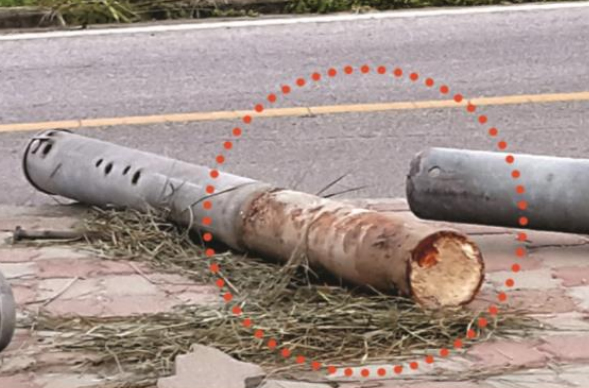

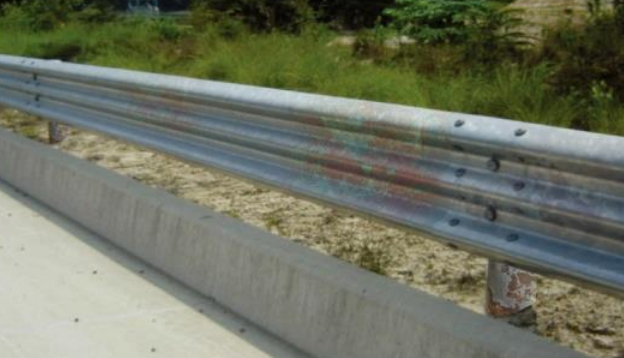

    Corrosion of buried post

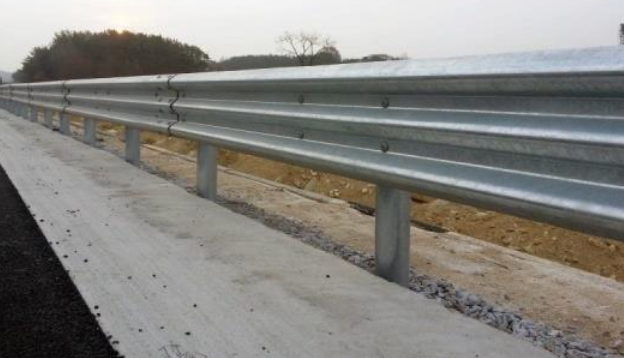

    comparison between new & old product

    PosMAC Galvanizing product
    PosMAC Steel Hot dip galvanized steel
    product
    Feature

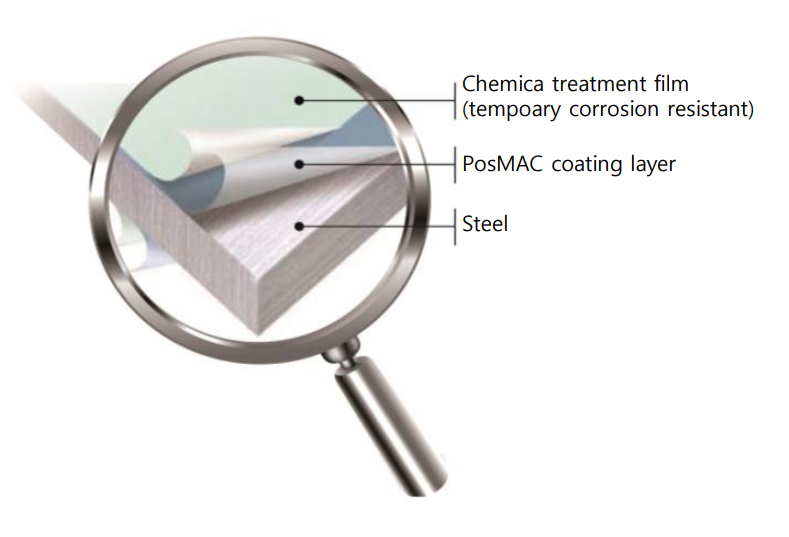

    • High corrosion-resistant alloy coating steel sheet

    • magnesium(Mg) + Aluminum(AI) + Zinc(Zn)

    • Guidelines of Ministry of Land / Complete revision and announcement of Korea Expressway Corporation's specifications

    • Excellent corrosion resistance on planar portion / prevention of corrosion on cutting part

    • Strong with acid rain

    • Very strong anti-corrosion with salt

    • Strong to corrosion from road calcium chloride

    • Plating on steel sheet(molten zinc)

    • The life time of the guardrail is about 10 years and getting rust on reclaimation post from field(deterioration)

    • Early discoloration of bleaching and color after installation in the field

    • Large difference with hot dip galvanized apperanance quality

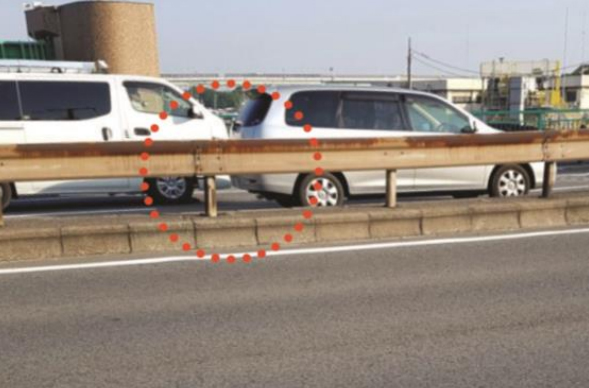

    • weak with salt and easily come out rust after installation 2 years

    • Easy corrosion from road calcium chloride

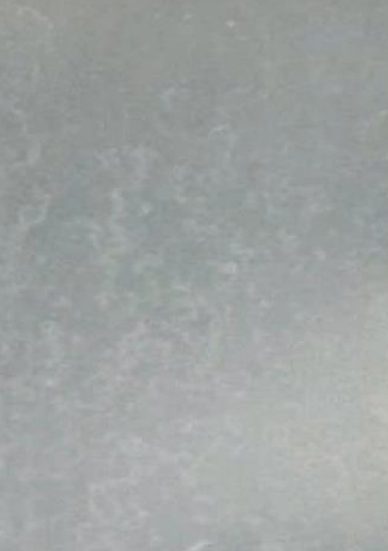

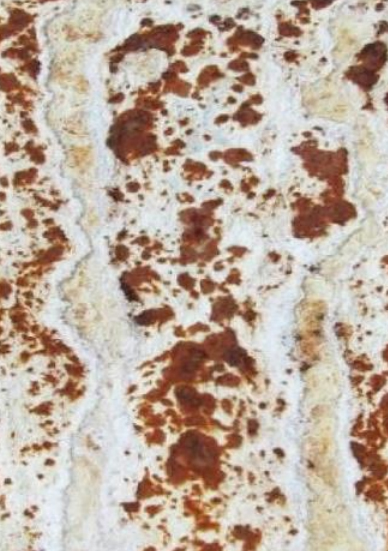

    PosMAC (275g/㎡) Hot dip galvanized steel(550g/㎡)
    Comparison result of corrosion resistance

    PosMAC is 3 times higher corrosion-resistant properties than conventional hot-dip galvanized product

    ※ test method

    CCT salty water spray test (galvanized product occurred red rust from 90 cycle)
    (Salty water spray 2Hr -> Dry 4Hr - Humidity 2Hr) Check the sample after 1 cycle

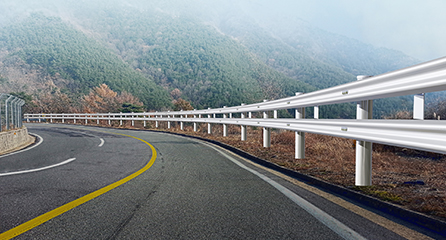

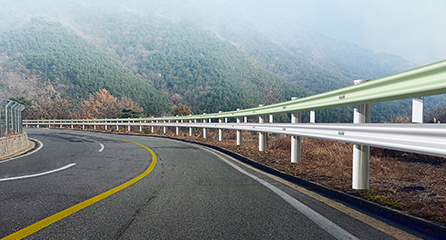

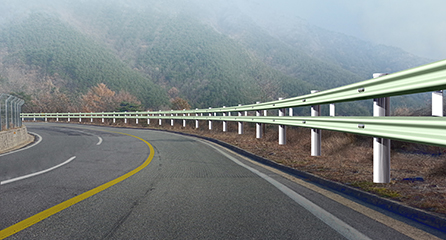

    PosMAC Roadside/Elevated ground Open type Guardrail SB2 Degree

    • Name of goods KRKSI-GP254-SB2
      Unit Span
      Standard W4000×H880mm
      Commodity identification number 23315771
      Note Plating
    • Name of goods KRKSI-GP254-SB2-1
      Unit Span
      Standard W4000×H880mm
      Commodity identification number 23315770
      Note Painting of upper part
    • Name of goods KRKSI-GP254-SB2-2
      Unit Span
      Standard W4000×H880mm
      Commodity identification number 23315769
      Note Painting
